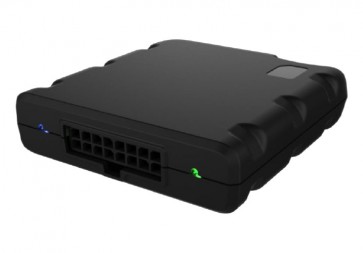

Foretrack AT200

Features

• Compact and fully integrated device – one box solution
• Very low idle power consumption – virtually zero battery drain on a parked vehicle
• SiRFStar IV GPS with 10mm ceramic patch antenna
• SIM800H GSM/GPRS/Bluetooth modem
• Internal back-up battery, 900mAh
• GPRS TCP or UDP mode reporting
• 3 axis MEMS based accelerometer for driver behaviour reporting + motion detection
• Mechanical tremble sensor
• 2 digital inputs
• 1 digital output switch using MOSFET
• 1 RS232 serial port
• iButton (Dallas Key) input for driver ID
• Bluetooth based driver ID
• Status LED indicators for GSM and GPS
• Simple and flexible user configuration by ASCII terminal, SMS or GPRS
• Over the air firmware update – fast and reliable, typically 2-3 minutes to complete
• Simple and efficient reporting protocols – to minimise airtime usage and cost
• SON8 / QFN8 M2M SIM option
• 5 year warranty included as standard
• SDK option available
• Designed and assembled in the United Kingdom
